DESIGN & ENGINEERING
HAZ Metal provides services in the design of fixing systems and the preparation of structural calculations.

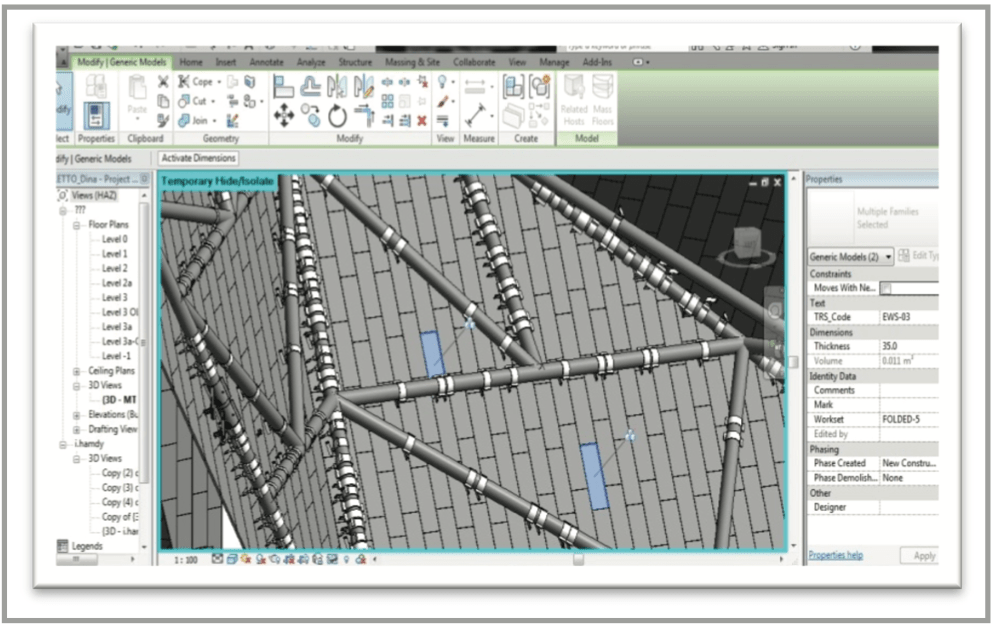

This service is done in the company technical department using CAD software and stress analysis programs.

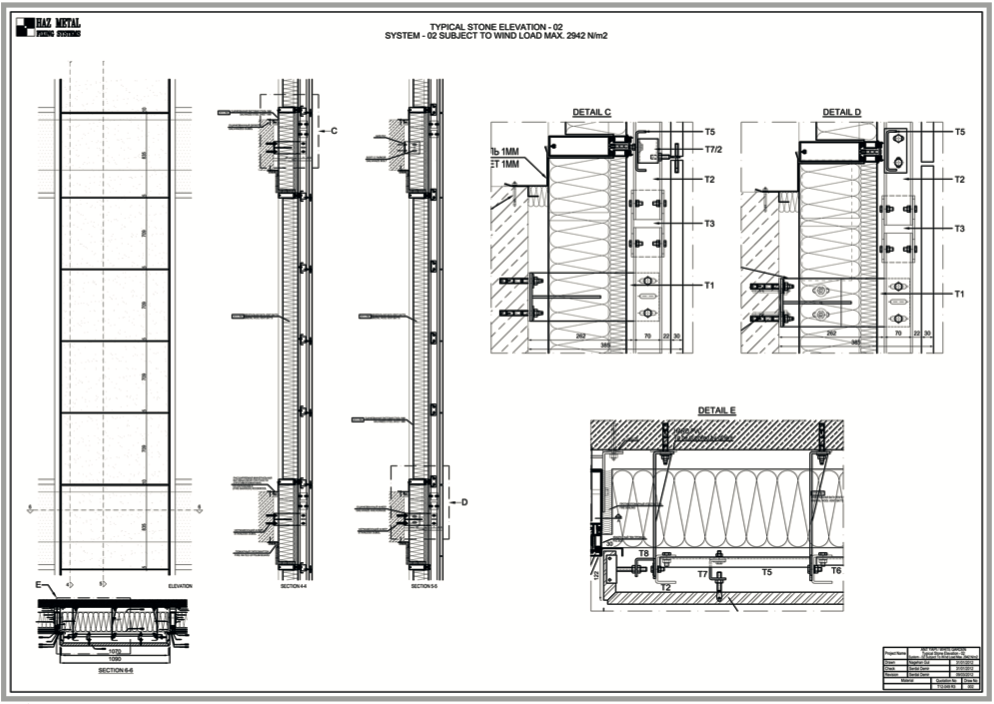

Our technical department receives the necessary technical information of the project in order to propose the most suitable, secure, easy to use and economical fixing systems in accordance with the project criteria. Custom design is also made in accordance with the architectural drawings of the project.

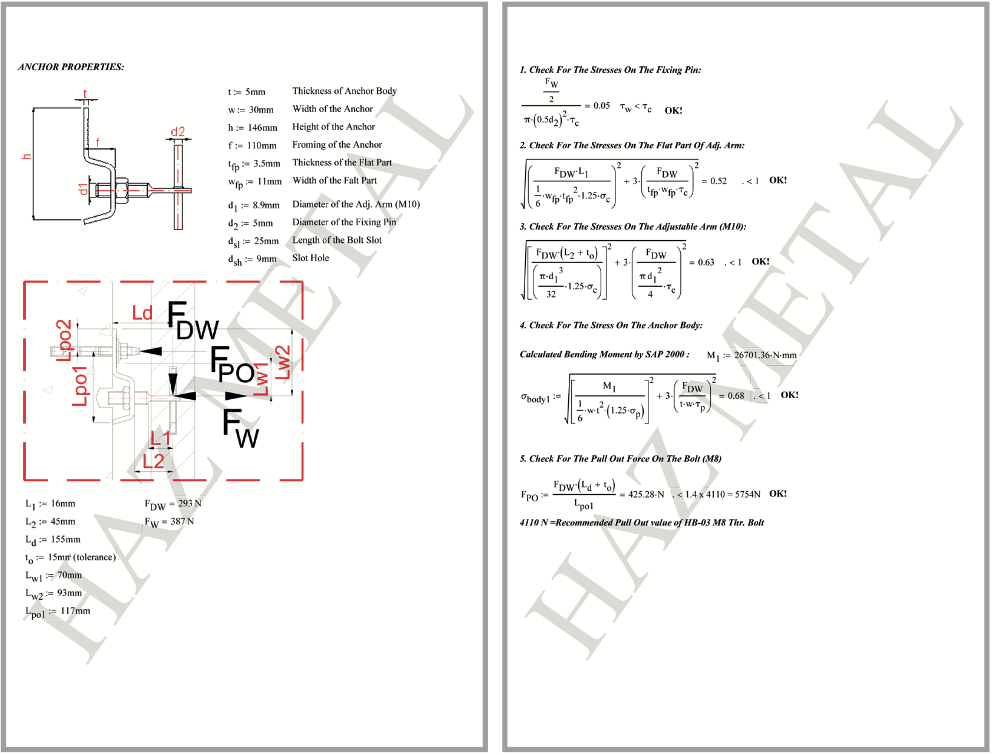

HAZ Metal provides the necessary technical documentation for submittal to the project officials in order to receive approval for the fixing system elements. The following principles are used in the design and structural calculations for natural stone fixing systems.
Finite element stress analysis is implemented for complex structures where the structural integrity of the fixing systems needs to be maintained. This procedure is especially made for sub channel systems and unitised panel facade units.
HAZ Metal can offer the design and engineering services by referring to any internationally renown standards. The engineering department will relate to the specifications of the project and conduct its design and dimensioning according to the requested criteria.
Reference is made to the following standards:
Our technical department receives the necessary technical information of the project in order to propose the most suitable, secure, easy to use and economical fixing systems in accordance with the project criteria. Custom design is also made in accordance with the architectural drawings of the project.
HAZ Metal provides the necessary technical documentation for submittal to the project officials in order to receive approval for the fixing system elements. The following principles are used in the design and structural calculations for natural stone fixing systems.
Finite element stress analysis is implemented for complex structures where the structural integrity of the fixing systems needs to be maintained. This procedure is especially made for sub channel systems and unitised panel facade units.
HAZ Metal can offer the design and engineering services by referring to any internationally renown standards. The engineering department will relate to the specifications of the project and conduct its design and dimensioning according to the requested criteria.
Reference is made to the following standards:
British Standards
BS 8298
Design and installation of natural stone claddingBS 10088-2
Steel plates, sheets and strips stainless and heat resistingBS 6105
Corrosion resistant stainless steel fastenersBS 5950
Structural use of steel work in buildingBS 6399 Part 2
Code of practice for wind loadsBS 970 Part 3
Mechanical properties for stainless steel
German Standards
DIN 18 516
Cladding for ventilated walls DIN 18 800
Steel structures, design and dimensioning DIN 18 801
Steel framed structures DIN 1045
Concrete and reinforced concrete, design and dimensioning DIN 1053
Masonry, design and dimensioning DIN 1055
Wind loads design code DIN 4114
Steel construction, stability cases
American Standards
ASTM C1242 -12
Standard guide for stone attachment systems ASTM A 276
Specification for stainless steel bars and shapes ASTM 666
Specification for annealed or cold worked austenitic stainless steel sheets ASCE
Minimum design loads for buildings Uniform Building Code & International Building Code
Euro Standards
EN 1990
Basis of Structural Design. Structural Analysis and Design by Testing EN 1090
Execution of steel & aluminium structures EN 1991
General Actions - Wind EN 1998
General Rules, seismic actions and rules for buildings
